Hunter Panels XCI NB (5/8 OSB Attached) 4ft x 8ft - All Sizes

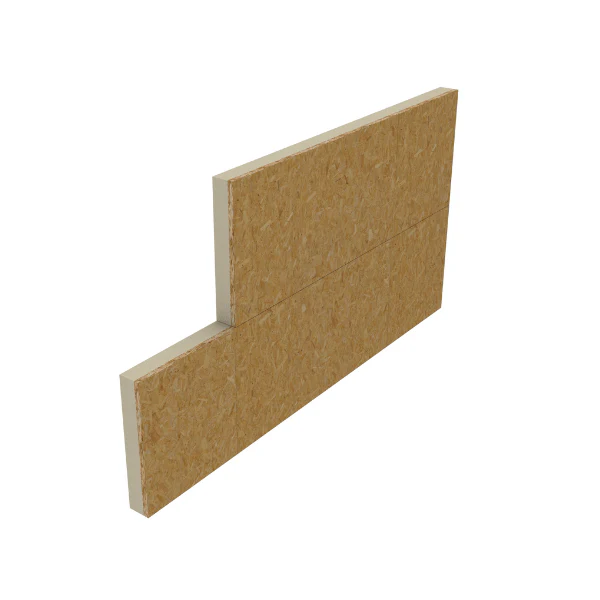

Xci NB is an energy efficient rigid insulation panel composed of a closed cell polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and OSB on the other. It is designed for use in Type V commercial and residential wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.
| Thickness | R-Value | Sq Ft/Pallet | Sheets Per Pallet |
|---|---|---|---|
| 1.6" | 6.8 |
960 | 30 |
| 2.1" | 9.8 |
704 |
22 |
| 2.6" | 12.9 |
576 | 18 |
| 3.1" | 16.1 |
480 | 15 |
| 3.6" | 19.3 | 416 | 13 |
| 4.1" | 22.5 |
352 |
11 |
| 4.6" | 25.8 |
320 |
10 |
Features & Benefits
- Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.Â
- Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS optionsÂ
- Offers a superior combination of high insulating properties and mechanically attachable surface for claddingsÂ
- Mitigates thermal bridging from cladding fastenersÂ
- Up to 2.6” thickness can be used as structural insulating sheathing when applied to wood studs.  Contact Hunter Xci for shear values, wind loads and attachment requirements.Â
- Approved component of the Xci AEGIS Wall SystemÂ
