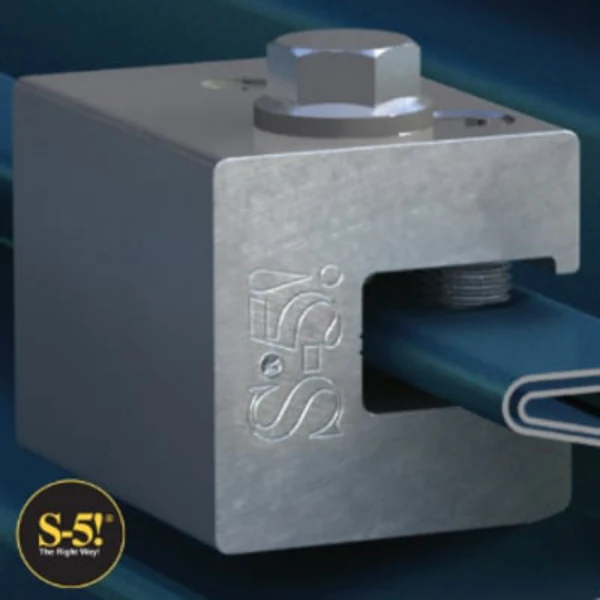

S-5-H90 Mini Metal Roof Clamps
The S-5-H90 Mini is a bit shorter than the S-5-H90 and has one setscrew and one threaded bolt hole rather than two. TheĀ H90 MiniĀ clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.Ā The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.
Specifications:
- Designed for standing seam panels withĀ horizontal, single-foldedĀ seams
- Secure and cost-effective solution forĀ horizontal seam dimensions ā„ 0.65ā (16.5 mm)
- Fits all standing seams theĀ S-5-UĀ fits horizontally, and fits fully seamed profiles theĀ S-5-HĀ fits verticallyĀ - but is more cost-effective than either.
- One T-30 Torx round-point setscrewĀ - side installation -Ā (Torx bit tip provided)Ā
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGardĀ® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
S-5-H90 Mini Metal Roof Clamps
S-5-H90 Mini Metal Roof Clamps
The S-5-H90 Mini is a bit shorter than the S-5-H90 and has one setscrew and one threaded bolt hole rather than two. TheĀ H90 MiniĀ clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.Ā The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment.
Specifications:
- Designed for standing seam panels withĀ horizontal, single-foldedĀ seams
- Secure and cost-effective solution forĀ horizontal seam dimensions ā„ 0.65ā (16.5 mm)
- Fits all standing seams theĀ S-5-UĀ fits horizontally, and fits fully seamed profiles theĀ S-5-HĀ fits verticallyĀ - but is more cost-effective than either.
- One T-30 Torx round-point setscrewĀ - side installation -Ā (Torx bit tip provided)Ā
- No M8 bolt included
S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGardĀ® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
